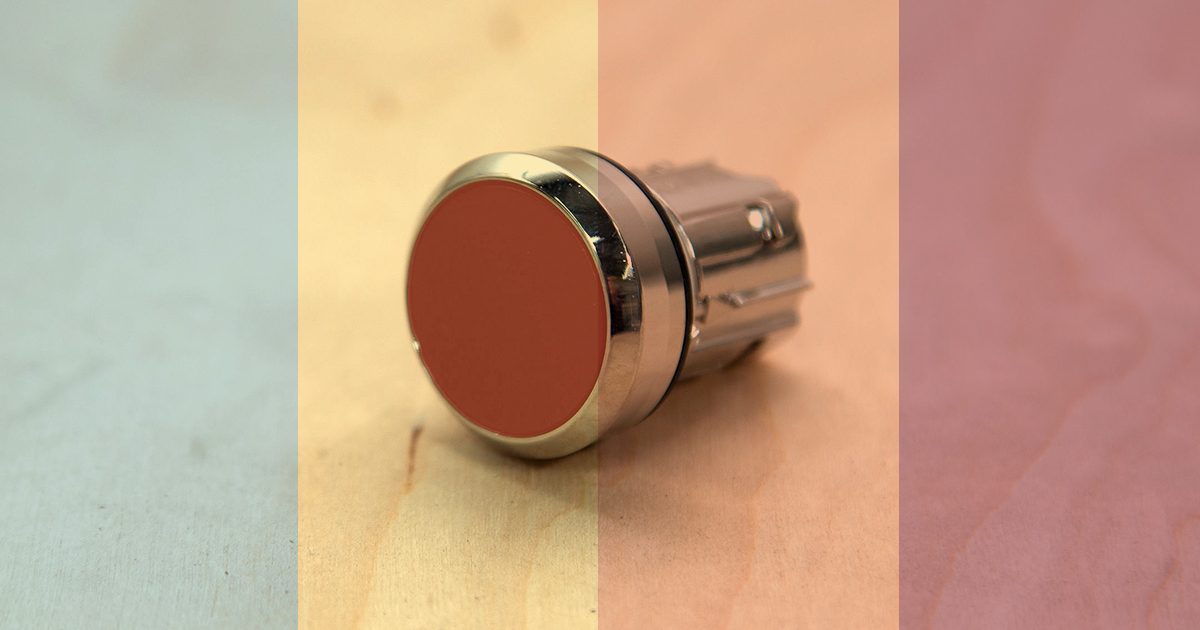

Brand Colors Overlaid on a Image of a Button

How to Replace a Juicer Button

Wondering how to replace a juicer button on your Juiced Rite control panel? You’ve come to the right place! Here, you will learn how to replace an old-style lock nut Start Button with the new contact block style on your cold press juicer. (These same instructions apply to our Stop button too!)

Before You Start

SAFETY FIRST! Always remember to turn your power off and unplug your machine before working on any type of electrical maintenance or cleaning. You can turn off the main power with the red and yellow switch on the electrical box located at the back of your press.

Power is off? Machine unplugged? Good — it’s time for action!

Close Up of a Control Panel on Juiced Rite Cold Press Juice machine M100R4

The button you’ll replace is in the Control Panel located next to the shredder. The Control Panel is the front/top portion of the Control Box, which houses all your buttons and switches for operating the juicer.

For a walk through of how to replace a juicer button, check out the video and written instructions below:

Remove the Old Button

1. To start, open your control box so you can see the inside panel behind your buttons. Read this article for instructions on how to open your control box.

Backside of a Control Panel Opened Up

2. Then, loosen the two screws holding down the terminal wires.

A Demonstration of Removing the Screws That Hold in the Terminal Wires

3. Next, remove the wires and Lock Nut at the base of the button. Toss your old button (safely, of course, don’t conk anyone on the head!)

Hands Loosening the Lock Nut on the Backside of the Button on the inside of a control panel for a Juiced Rite Machine

Replace with a New Juicer Button

1. Now, grab your new Button.

Hand Showing off Your New Button

Note: The old button you’re replacing has a lock screw to hold it in place. The new style buttons use a contact block holder on the back instead.

The Contact Block Holder Used for the New Style Button

2. Then, put the button through the hole in the front of the control panel.

Inside of a Control panel

3. Line up the grooves and arrows on the contact block with the ones on the button.

Image of the Contact Block Holder and the Button Demonstrating Where they Line up for Installation

Install Contact Block

1. Install the contact block holder onto the back of the button you’ve just put on your control panel (see finished product to the right).

When you install the contact block holder it’ll make a click — that’s how you know it’s in!

Backside of a Control Panel Opened Up

2. After you hear that click, tighten the screw used to hold the contact block holder down to secures your button into place.

Screwdriver on the Screw Holding Down the Contact Block

3. Now, grab your Contact Block.

Close up of Contact Block for the button on a Juiced Rite cold press machine

Check the top of your contact block and make sure the number Four (4) is at the top and the number Three (3) is at the bottom.

You can see these numbers on the side of the contact connections (image above) or on the contact side (image to the right). They’re really tiny and will appear upside down to you!

Contact Block Terminal Labels

4. Next, hook the top of the contact block into the holder to the left side of the button back.

To make sure the contact block is in place, push down on the bottom of the contact block with one finger and just a bit of pressure (and maybe a little wiggle) until you hear a click — that’s how you know it’s secured.

You’re almost there!

A hand pressing the contact block into place on the backside of a new button in the control panel of a Juiced Rite machine

5. Lastly, re-install the wires that you removed before.

Your Number One (1) Wire will be going into the Number Four (4) Terminal. Tighten the screw to hold it securely.

Demonstration of Tightening the Screws in Number Four Terminal

And with that, your button and wires are secured and you’ve done it — Good Job!

Thumbs Up In Front of Backside of Control Box for a Juiced Rite Cold Press Machine

 Finish Up

  1. Tuck all the wires and close the control panel carefully.
  2. Use a large flat screwdriver to “lock” the box and apply pressure to the seal
  3. Plug in and turn on your machine to test your new start button!

Congratulations on learning how to replace a juicer button!
