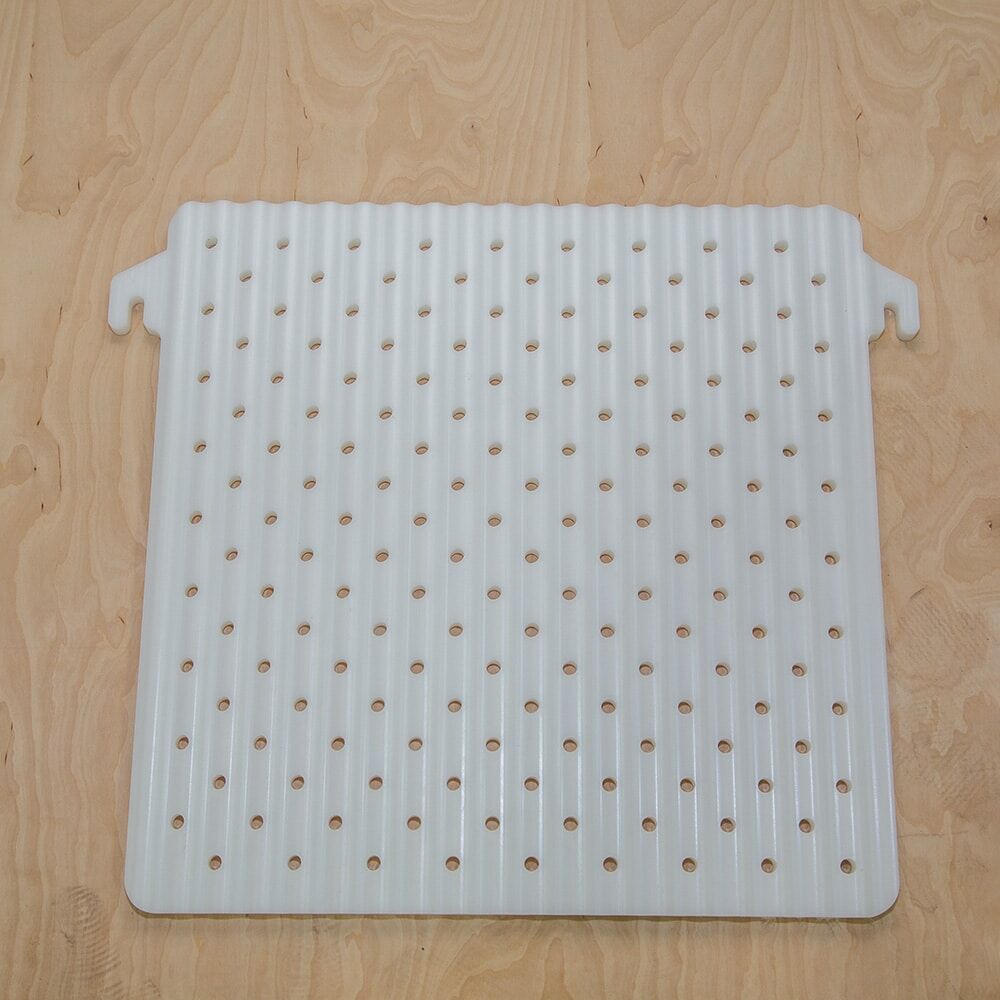

Model 100/200/400 Press Board Perforated Low Tab for Stationary Platen

  • 22 3/4″ x 19 1/2″ Perforated Wave Low Tab Press Board for the stationary platen.

    *Pair with a HIGH TAB Press Board for machine operation

    Made for the:

  • Model 100
  • Model 200
  • Model 400

$198.00

The Specifics

Full Description

Our perforated wave press board with low side tabs is used ONLY on the stationary platen of larger freestanding cold press juice machines: Model 100, Model 200 (R2/R3 versions only), and Model 400.

Low Tab boards are used on the stationary platen ONLY. These boards are hung by notches under the side tabs that align with pins on the platen face.

IMPORTANT: You will need to pair your LOW TAB with a HIGH TAB Press Board (SKU#JR0070) installed on your moving platen to operate your juice machine properly.

Made with HDPE, these press boards are used on the interior of the platens and designed to reduce pressure during pressing. They are also made with a perforated wave design to channel the juice away from the product in the press bags.

NOTE: You will need the following for your machine to operate properly:
Model 100 (all versions): ONE (1) High Tab Press Board and ONE (1) Low Tab Press Board
Model 200R1: TWO (2) High Tab Press Boards and TWO (2) Solid Center Press Boards
Model 200R2/R3: TWO (2) High Tab Press Boards and TWO (2) Low Tab Press Boards
Model 400 (all versions): TWO (2) High Tab Press Boards and TWO (2) Low Tab Press Boards and TWO (2) Solid Center Double-Sided Wave Press Boards

Details

Specifications

Additional information

Weight 7.52 lbs
Dimensions 19.5 × 22.75 × 0.75 in
