Model 100/200/400 Press Board Perforated High Tab For Stationary Platen

  • 22 3/4″ x 19 1/2″ Perforated Wave High Tab Press Board for the moving platen.*Pair with a LOW TAB Press Board for machine operationMade for the:
  • Model 100
  • Model 200
  • Model 400

$198.00

The Specifics

Full Description

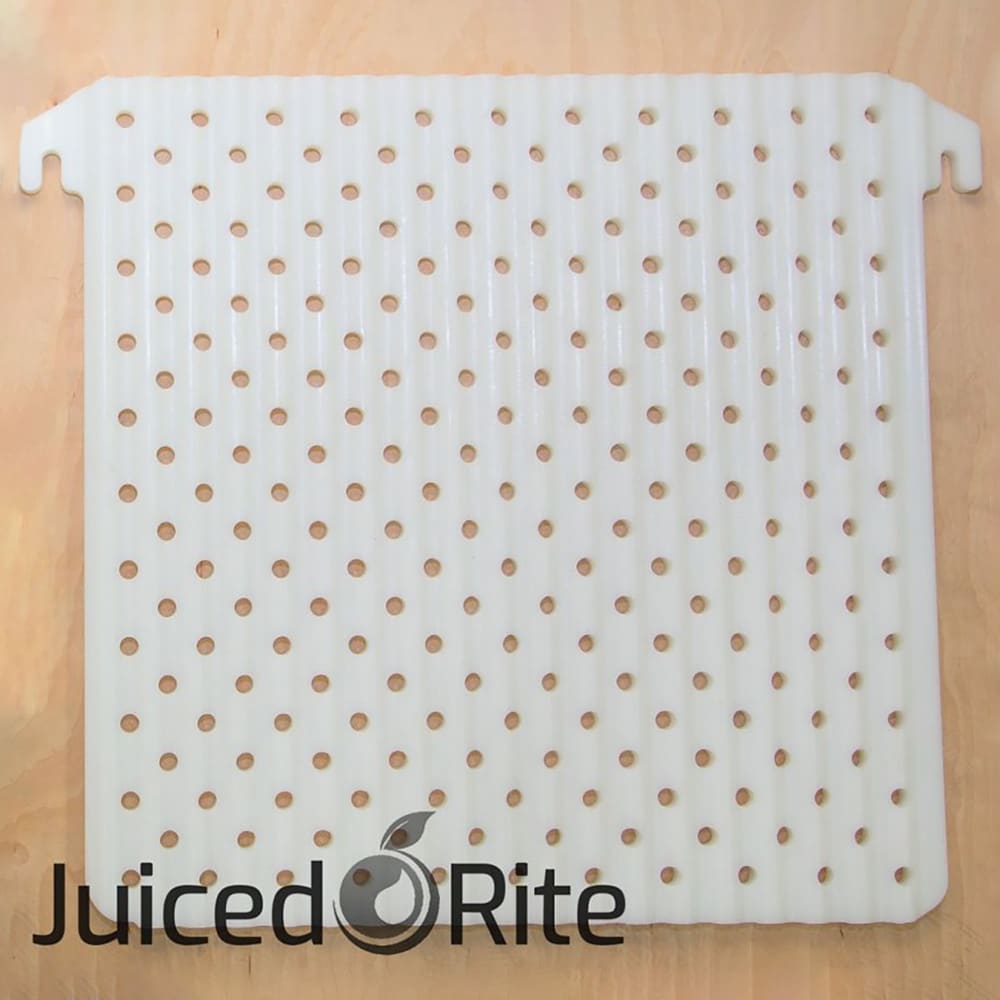

Our large perforated wave press board with high side tabs is used ONLY on the moving platen of larger freestanding cold press juice machines: Model 100, Model 200, and Model 400.

High Tab boards are used on the moving platen ONLY. These boards are hung by notches under the tabs that align with pins on the platen face.

IMPORTANT: You will need to pair your HIGH TAB with a LOW TAB Press Board (SKU#JR0071) installed on your stationary platen to operate your juice machine properly.

Made with HDPE, these press boards are used on the interior of the platens and designed to reduce pressure during pressing. They are also made with a perforated wave design to channel the juice away from the product in the press bags and into the juice collection pan.

NOTE: You will need the following for your machine to operate properly:
Model 100 (all versions): ONE (1) High Tab Press Board and ONE (1) Low Tab Press Board
Model 200 R1: TWO (2) High Tab Press Boards and TWO (2) Solid Center Press Boards
Model 200 R2/R3: TWO (2) High Tab Press Boards and TWO (2) Low Tab Press Boards
Model 400 (all versions): TWO (2) High Tab Press Boards and TWO (2) Low Tab Press Boards and TWO (2) Solid Center Double-Sided Wave Press Boards

Details

Specifications

Additional information

Weight 7.24 lbs
Dimensions 19.5 × 22.75 × 0.75 in
