How to Replace Your Control Panel Button

Need a new shiny button? You’ve come to the right place! Here you will learn how to replace an old-style lock nut Start Button with the new contact block style on your cold press juicer. (These instructions apply to the Stop buttons too!)

Before You Start

Before getting started on replacing your start button (see what we did there?)…

SAFETY FIRST! Always remember to make sure to turn your power off before working on any type of electrical maintenance or even cleaning. Always unplug your machine when servicing or cleaning also.

You can turn off the main power with the red and yellow switch on the electrical box located at the back of your press.

Powers off? Machine unplugged? Good, now let’s get started.

Replace Your Button

The button is in the Control Panel, which is located next to the shredder. The Control Panel is the front/top portion of the Control Box, which houses all your buttons and switches for operating the machine.

To replace your button, follow these steps:

Remove the Old Button

Open your control box so you are inside and the back of the panel is visible (for instructions on how to open your control box, read more here)

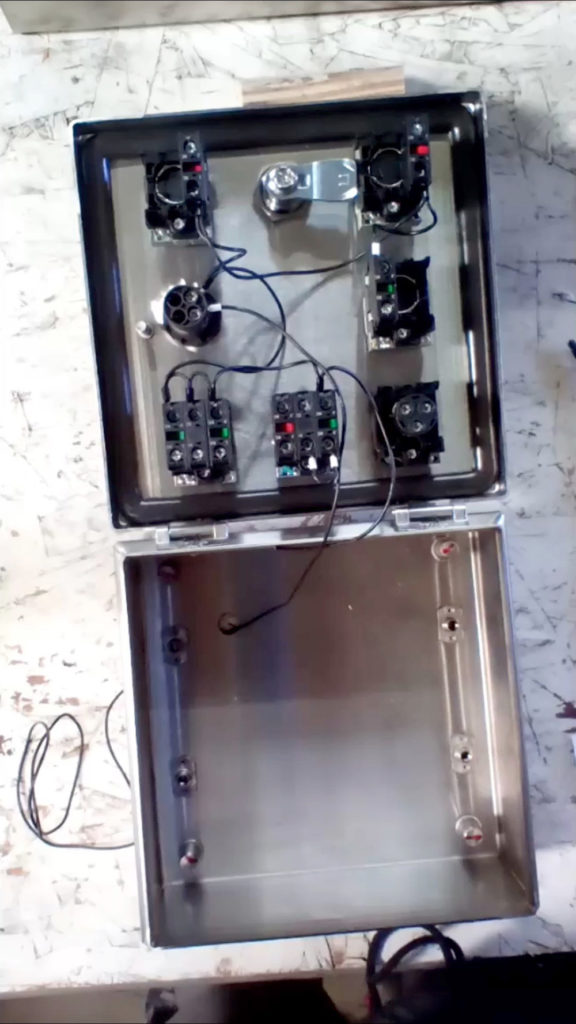

Control Box open to see the inside — An Open Control Box

Loosen the two screws holding down the terminal wires

A Demonstration of Removing the Screws That Hold in the Terminal Wires — Loosen Both Screws that Hold in the Terminal Wires for the Button

Then, remove the wires and remove the Lock Nut at the base of the button

Loosening the Lock Nut on the Backside of the Button — Remove the Lock Nut on the Backside of the Button

Toss your old button (safely, of course, don’t conk anyone on the head)

Install the New Button

Now grab your new Button

Hand Showing off Your New Button — Your Shiny New Button

Note: the new style buttons use a contact block holder on the back to hold them in place instead of the lock screw

The Contact Block Holder Used for the New Style Button

Put the button through the hole in the front of the control panel

Inside of a Control panel — Button installed in the Hole of the Control Panel

Line up the arrows on the contact block with the arrows on the button º there are also grooves that match up in these same locations (see image below)

Alignment Groove on Backside of Contact Block Holder and Tab on New Button

Then place the contact block holder onto the installed button on the inside of the panel (see finished installation in image below) – when you install the contact block holder it’ll make a nice little click – that’s how you know it’s in

Backside of a Control Panel Opened Up — Installed Contact Block Holder

Tighten the screw used to hold the contact block holder down – this screw secures your button into place

Screwdriver on the Screw Holding Down the Contact Block — Tighten the Contact Block Holder Screw

Grab your Contact Block

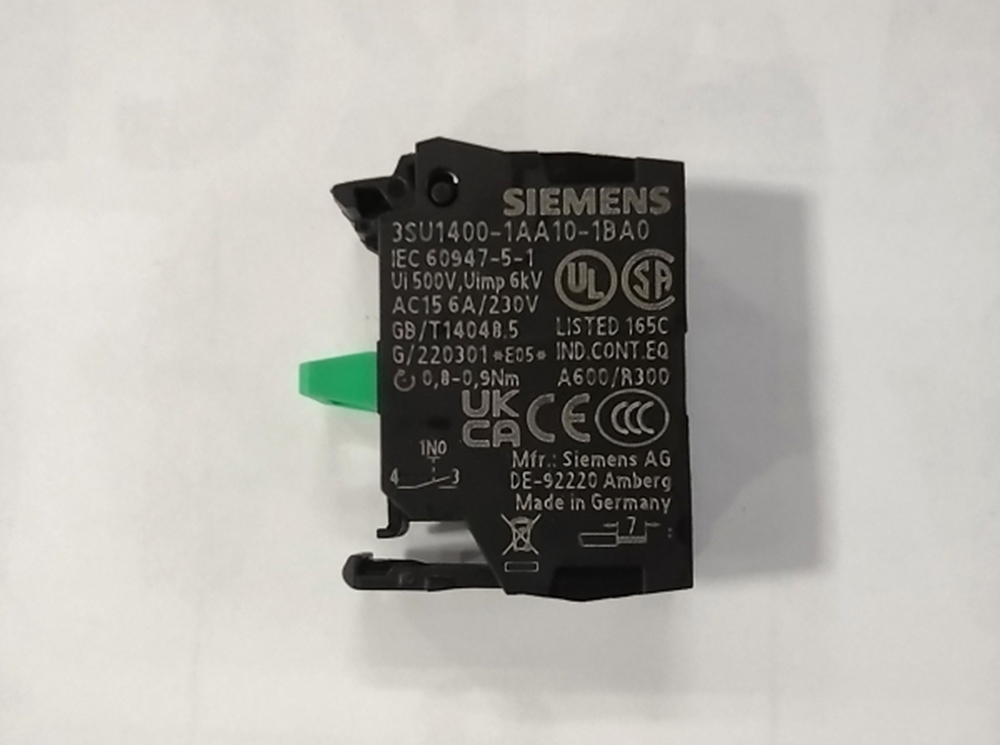

Close up of Contact Block — Contact Block

Check the top of your contact block and make sure the number Four (4) is at the top and the number Three (3) is at the bottom (you can see them in the above image at the side of the contact connections or on the contact side, they’re really tiny and would be upside down to you!)

Hook the top of the contact block into the holder to the left side of the button back
Push down on the bottom of the contact block with one finger and just a little bit of pressure (and maybe just a little wiggle) until you hear a click – that’s how you know it’s secured

Pressing the Contact Block into Place — Press Contact Block into Place

Now that our new button and contact block are properly secured, you will install those wires that you took out before
Your Number One (1) Wire will be going into the Number Four (4) Terminal, then tighten the screw to hold it secure

Demonstration of Tightening the Screws in Number Four Terminal — Tighten the Screw For Number Four Terminal

Your Number Three (3) Communication Wire will be going into the Number Three (3) Terminal, then tighten the screw to hold it secure

Demonstration of Tightening the Screws in Number Three Terminal — Tighten the Screw For Number Three Terminal

And with that, your button and wires are secured and you’ve done it – Good Job!

Thumbs Up In Front of Backside of Control Box — Your Button is Replaced – Good Job!

Finish Up

Tuck all the wires and close the control panel carefully
Use a large flat screwdriver to “lock” the box and apply pressure to the seal
Plug in and turn on your machine to test your new start button!

For a walk through of replacing your button, check out the video below:

Congratulations on Your New Button!
